VOC Treatment Process | Rotating RTO Regenerative Thermal Oxidizer
Destroy Volatile Organic Compounds (VOCs) with maximum thermal efficiency and a minimal plant footprint. Engineered by Altijd-kracht, our advanced Rotating Regenerative Thermal Oxidizer (RTO) utilizes a highly precise continuous rotary valve, replacing complex multi-valve systems. Guarantee > 99% purification efficiency en tot 95% thermal recovery, achieving self-sustaining, zero-fuel operation to permanently eliminate your environmental compliance risks and exorbitant energy costs.
⚙️ Executive Engineering Brief
Volumetric & Concentration Capacity
- Air Volume: 1,000 – 100,000 Nm³/h
- Concentration Range: 1000 mg/Nm³ to < 25% LEL
- Flow Elasticity: 30% – 120% adaptability
- Auto-thermal Point: ~1.5 g/m³ (Toluene Eq.)
Purification Performance
- Purification Efficiency: > 99%
- Thermische efficiëntie: Up to 95%
- Combustion Temp: ≥ 760 °C
- Pressure Loss: ≤ 3000 Pa
Core Equipment Specs
- Valve Type: Continuous Rotary Gas Distributor
- Heat Media: Honeycomb Ceramic Regenerator
- Brander: Proportional Regulating (30:1)
- Isolatie: 300mm High-Alumina Silicate
Main Technical Specifications
De Ever-power Rotating RTO is engineered to deliver unwavering performance under volatile industrial conditions. Our specifications reflect a design focused on extreme longevity and continuous compliance.
| Technical Parameter | Specification Range | Engineering Impact & Plant Value |
|---|---|---|
| Processing Air Volume | 1,000 – 100,000 Nm³/h | Highly scalable cylindrical design minimizes footprint compared to multi-bed square configurations. |
| Combustion Temperature | ≥ 760 °C | Ensures complete destruction of stable VOC hydrocarbon bonds, achieving reliable >99% conversion. |
| Thermische terugwinningsefficiëntie | Up to 95% | Massive reduction in natural gas consumption. Process becomes self-sustaining at ~1.5 g/m³ VOC. |
| Valve Leakage Rate | ≤ 1% | Precision-machined rotary valve with air knife sealing prevents raw gas from bypassing the combustion chamber. |
| System Pressure Loss | ≤ 3000 Pa | Smooth, continuous rotary operation prevents the sudden pressure spikes associated with traditional poppet valves. |
Regenerative Thermal Oxidation Process
Regenerative Thermal Oxidation (RTO) is the global standard for managing complex, mid-to-high volume Volatile Organic Compounds. The process relies on pure thermal thermodynamics. Raw exhaust gas is drawn into the system and forced through a pre-heated bed of honeycomb ceramic material, rapidly raising the gas temperature.
Once the gas enters the central combustion chamber, an auxiliary burner elevates the temperature to 760 °C or higher. At this critical threshold, the carbon-hydrogen bonds in the VOC molecules instantly break apart, oxidizing completely into harmless Carbon Dioxide (CO&sub2;) and Water Vapor (H&sub2;O).
The resulting clean, extremely hot gas then flows out through a second ceramic bed. The ceramic absorbs this intense heat, cooling the gas for safe stack discharge while simultaneously storing massive thermal energy. A rotating valve constantly alters the flow direction, allowing the incoming dirty gas to continuously harvest the stored heat from the outgoing clean gas, achieving an astonishing 95% thermal recovery rate.

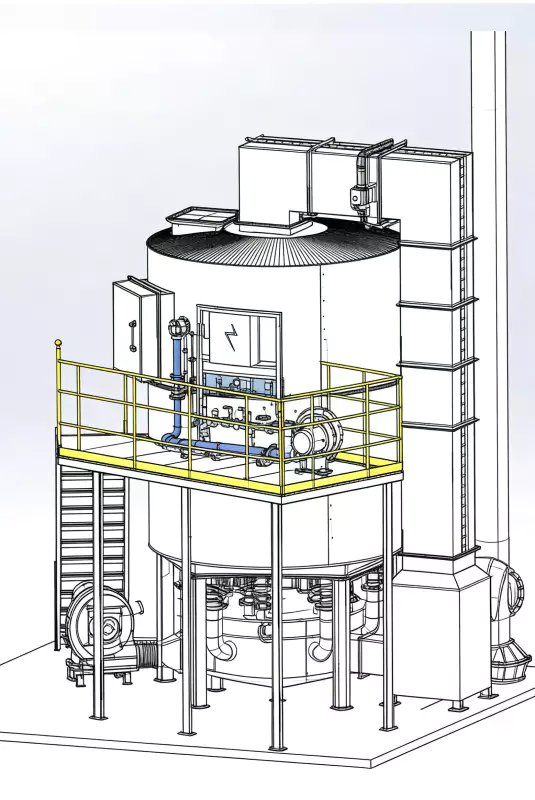

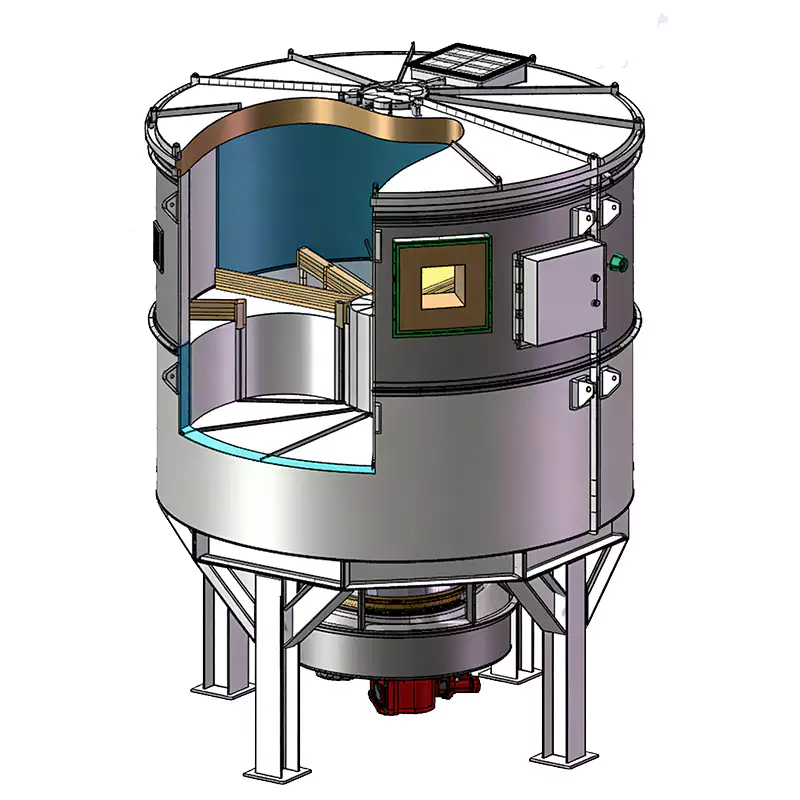

⚙️ Product Structure of Rotary RTO
Unlike traditional bulky multi-bed systems, the Ever-power Rotating RTO consolidates the entire thermal mass into a single, elegant cylindrical vessel divided into multiple pie-shaped sectors. The core components include:
- 1. Rotary Valve System: The absolute heart of the device. A single, continuously turning rotor distributes the gas. It features an integrated air knife seal and segmented rotor connections, allowing maintenance without tearing down the entire housing.
- 2. Ceramic Regenerative Body: High-density, precision-extruded honeycomb ceramics packed into the cylindrical sectors. They provide massive specific surface area for optimal heat transfer.
- 3. High-Efficiency Burner: A proportional regulating gas burner (30:1 ratio) positioned in the upper combustion chamber, ensuring rapid heating and stable flame roots.
- 4. Insulation Shell: Lined with 300mm of high-alumina aluminum silicate fiber. These compressed modules eliminate thermal bridging, keeping the exterior shell cool and safe.
- 5. Safety Bursting Disc: A calibrated pressure relief device that instantly vents the chamber in the event of an unexpected deflagration, protecting structural integrity.
- 6. Electronic Control System: An advanced PLC and HMI matrix that governs the rotary speed, burner modulation, and safety interlocks autonomously.
Working Principle & Switching Sequence

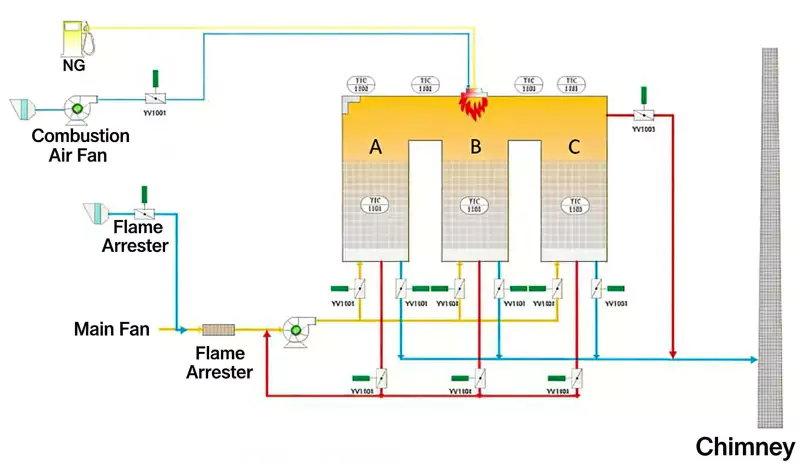

In a traditional 3-bed RTO, massive poppet valves slam open and shut to redirect gas through distinct A, B, and C chambers (Inlet, Purge, Outlet). This slamming causes severe pressure spikes that disrupt upstream production lines, like printing presses or coating booths.

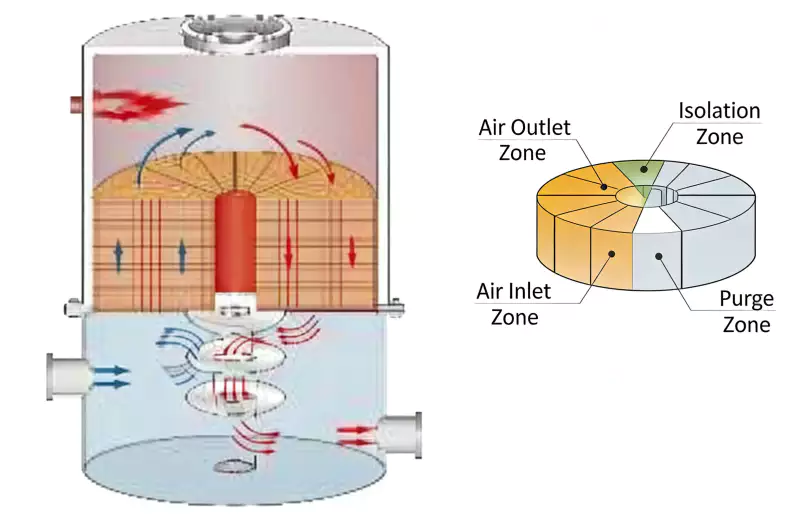

De Rotating RTO eliminates these pressure shocks through a single, slow-turning rotary valve at the base of the unit. The stationary ceramic bed above is divided into multiple pie-shaped sectors (typically 12).
- Continuous Distribution: As the rotor slowly turns (approx. 1-2 RPM), half of its opening directs dirty incoming gas up through the “heating” ceramic sectors.
- Continuous Exhaust: The other half of the rotor directs hot, clean gas down through the “cooling” ceramic sectors to exhaust to the stack.
- Integrated Purge Zone: Crucially, a specialized sealing zone acts as a moving “purge” sector. Before a dirty “heating” sector transitions to becoming a clean “exhaust” sector, it is blasted with clean air. This pushes any lingering unburned VOCs back into the combustion chamber, ensuring absolutely no raw gas escapes to the stack.
⚖️ Comparison of Thermal Storage Oxidation Processes
| Functie | 2-Bed RTO | 3-Bed RTO | Ever-power Rotary RTO |
|---|---|---|---|
| Structure & Footprint | Simple / Compact | Complex / Large Footprint | Highly Integrated / Very Compact |
| Valve Mechanics | 4 Poppet Valves (Leakage risk) | 9 Poppet Valves (High maintenance) | 1 Rotary Valve (Low failure rate) |
| Purification Efficiency | ≤ 95% (Exhaust gas escapes during switch) | > 99% | > 99% |
| Pressure Fluctuation | Significant (Disrupts upstream production) | Relatively Small | Zero Shock (Smooth continuous rotation) |

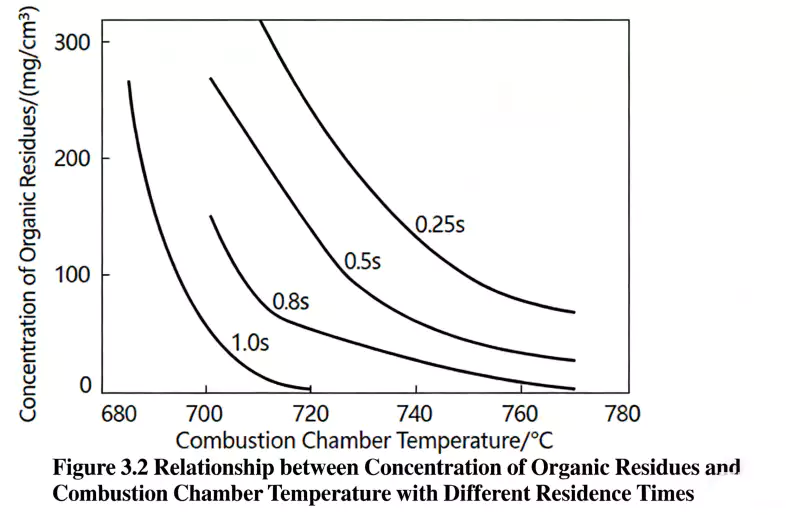

Factors Affecting RTO Combustion Efficiency
Reaction Temperature
Thermodynamics dictate that increasing the combustion chamber temperature exponentially accelerates the oxidation reaction. Operating faithfully above 760°C ensures the complete destruction of rigid VOC hydrocarbon bonds.
Verblijftijd
The longer the gas remains in the hot zone, the higher the purification efficiency. Our engineers meticulously calculate reactor dome volumes to guarantee >0.8s residence time at peak operational flow rates.
Turbulent Mixing
Perfect oxidation requires oxygen contact. Aerodynamic shaping within the Ever-power RTO generates deep turbulent mixing, massively increasing the collision opportunities between combustible VOC molecules and oxygen free radicals.
⚠️ Why Do You Need an RTO?
The Crushing Weight of Environmental Audits
Global environmental protection agencies are abandoning passive monitoring. Real-time CEMS (Continuous Emission Monitoring Systems) feed live stack data to authorities. Non-Methane Hydrocarbon (NMHC) limits have collapsed to extremely stringent levels (often < 50mg/Nm³).
VOCs are the primary precursor to deadly PM2.5 and photochemical smog. Failing an audit via cheap, inefficient activated carbon boxes guarantees crippling daily fines, public relations disasters, and immediate, legally-mandated cessation of factory production. An Ever-power RTO is not just equipment; it is your ultimate factory insurance policy.
Design Features & Advantages
- ✔️ Universal Compatibility: Can process almost all exhaust gases containing volatile organic compounds, regardless of complex chemical species.
- ✔️ High Volume Tolerance: Excellently tailored for massive air volumes with low-to-medium VOC concentrations.
- ✔️ Extreme Elasticity: The treatment capacity exhibits massive flexibility, smoothly handling flow rate variations from 30% to 120% of design capacity.
- ✔️ Concentration Resilience: Adapts automatically to sudden spikes or dips in VOC load without tripping offline.
- ✔️ Dust Forgiveness: Unlike catalysts, the thermal ceramic mass is not highly sensitive to small amounts of particulate dust entrained in the exhaust.
- ✔️ Peak Efficiency: Delivers the highest thermal energy recovery in the industry (95%) and absolute purification efficiency (99%).
- ✔️ Self-Heating Magic: At an exhaust concentration equivalent to ~1.5g/m³ of Toluene, the burner shuts off. The system sustains 760°C operation using zero natural gas.
- ✔️ Ease of Maintenance: Organic sediments can be easily “baked out,” and the ceramic thermal storage medium is highly accessible for decades of operational lifespan.
Typical Application Scenarios & Industry Fit
Automotive & Industrial Coating
Spray booths and drying ovens produce massive volumes of air loaded with complex paint solvents (esters, aromatics). The RTO processes these massive flows effortlessly, stabilizing the plant’s emission profile.
Chemical & Pharmaceutical
Reactor venting creates sudden spikes in VOC concentrations that lack any recovery value. The RTO buffers these spikes through its immense thermal mass, destroying complex halogens safely.
Drukwerk & Verpakkingen
High-speed flexographic and gravure printing evaporate tons of solvents hourly. The steady, mid-concentration flow perfectly matches the RTO’s self-heating threshold, yielding near-zero gas bills.
Success Cases Display
Zhejiang Bili Polymer
Industrie: Industrial Printing
Air Volume: 60,000 m³/h
Exhaust: Heavy Esters and Alcohols
The high 60,000 m³/h load required a massive 3-bed traditional system. By switching to Ever-power’s Rotary RTO, they saved 40% on footprint and eradicated upstream pressure fluctuations that were tearing printing webs.
Xintiandi Pharmaceutical
Industrie: Farmaceutica
Air Volume: 40,000 m³/h
Exhaust: Dichloromethane, Alcohols
Chlorinated compounds mandate specialized metallurgy to prevent acid dew-point corrosion. The bespoke Rotary RTO successfully processes these complex halogens reliably 24/7.
Shandong Huineng
Industrie: Chemische verwerking
Air Volume: 10,000 m³/h
Exhaust: Benzene series, Hydrocarbons
Deployed a highly compact rotary unit tailored for their 10,000 m³/h output. The system runs entirely on the autothermal heat generated by the dense benzene exhaust, costing zero natural gas.
Selection Guide: Architecting Your RTO
To engineer the precise thermal mass and structural diameter for your facility, our technical team requires robust operational data. Please prepare the following parameters to ensure system safety and maximize energy recovery:
1. Flue Gas Volumetrics & Flow Dynamics
Provide the Maximum Gas Volume (Nm³/h) and normal operating volume. Knowing the fluctuations (e.g., between painting shifts) helps us design the Variable Frequency Drive (VFD) control for the main ID fan to save power.
2. VOC Composition, Concentration & LEL
Provide the species (e.g., Toluene, Xylene) and the Total Inlet Concentration (mg/Nm³). Critical Safety Note: We must calculate the Lower Explosive Limit (LEL) to design the fresh air dilution loops to guarantee the system stays safely below 25% LEL.
3. Target Emission & Plant Layout
Confirm your specific local regulatory emission targets. Also, indicate the available footprint area. The Rotary RTO is highly compact, making it ideal for retrofitting into congested factory environments.
Value Quantified: Return on Investment (ROI)
The Hidden Cost of Sub-Par Abatement
Energy Bleed in Direct TO: Running a standard Direct Thermal Oxidizer burns massive amounts of natural gas to heat empty air, destroying factory profit margins.
Production Interruption: Using clunky 2-bed or 3-bed RTO systems causes violent pressure spikes every time the massive poppet valves switch. This sudden backpressure destroys delicate products inside coating/drying ovens and halts upstream production lines.
The Ever-power Rotary Upgrade ROI
Autothermal Fuel Independence: By harvesting 95% of the outgoing heat, a VOC concentration of merely 1.5 g/m³ allows the burner to shut off. You effectively destroy toxic gases using zero utility gas. The fuel savings alone often yield ROI within 12-18 months.
Seamless Pressure Stability: The continuously turning single rotary valve ensures a completely smooth draw of exhaust. Upstream ovens and presses operate flawlessly, eradicating waste products caused by pressure shock.
Global Client Scenarios
Detroit Automotive Plant (USA)
Application: Paint Spray Booth Exhaust
Challenge: Pressure fluctuations from their old 2-bed RTO were causing paint defects on the automotive assembly line.
“Ever-power’s Rotary RTO is a masterpiece. The continuous valve rotation completely solved our booth pressure issues. Defect rates dropped to zero, and the 99% destruction efficiency easily clears strict EPA mandates.” – Facility Director
Rhine Valley Chemicals (Germany)
Application: Reactor Vent Gas
Challenge: Highly concentrated but fluctuating volumes of odorous benzene compounds.
“The 95% thermal recovery means we are essentially running the destruction process for free. The automated bypass dampers handled our chemical concentration spikes perfectly safely.” – Process Engineer
Siberian Petrochem (Russia)
Application: Industrial Odorous Gas
Challenge: Processing 18,000 m³/h of harsh benzene gases in a brutal, freezing ambient climate.
“The 300mm aluminum silicate insulation is phenomenal. Despite the freezing outside temperatures, the RTO maintains its 760°C internal core flawlessly, eliminating our odor pollution issue entirely.” – Operations Chief
Sao Paulo Packaging (Brazil)
Application: Flexodruk
Challenge: Extremely tight factory footprint requiring high-volume solvent removal.
“The footprint of this rotary design is incredibly compact compared to the 3-bed dinosaurs we looked at. It fits perfectly on our roof, and the single-valve maintenance is a dream.” – Maintenance Manager
❓ Engineering & Operational FAQ
What exactly does “Auto-thermal” mean?
Auto-thermal means the system powers itself. Because the ceramic regenerator captures 95% of the heat from the outgoing clean gas, it aggressively pre-heats the incoming cold gas. When the incoming VOC concentration reaches roughly 1.5 g/m³ (toluene equivalent), the heat generated simply by destroying those VOCs is enough to maintain the 760°C reactor temperature. The natural gas burner shuts off completely.
How long does the ceramic honeycomb last?
Unlike catalysts which can be chemically poisoned, honeycomb ceramic is highly robust and inert. Assuming there is no heavy silica or fiberglass dust that physically melts and glazes the ceramic (which would require upstream filtration), the ceramic media typically lasts 5 to 10 years before requiring full replacement.
What happens if the VOC concentration spikes above 25% LEL?
Safety is integrated automatically via the PLC. If real-time telemetry detects VOC loads surging toward the Lower Explosive Limit (LEL), the system triggers proportional fresh air dilution valves to cool and dilute the stream. If temperatures exceed safe critical limits, hot-gas bypass valves open and the burner halts to prevent thermal runaway.
Is the rotary valve difficult to maintain?
No. The Ever-power rotary valve is designed with a segmented connection. This allows for routine inspection and replacement of the sealing ring or air knife without having to lift or disassemble the massive furnace body above it. It rotates slowly (approx. 1-2 rpm) causing very little mechanical wear.
Can I use this for low-concentration exhaust?
While an RTO can process low-concentration exhaust (< 1000 mg/Nm³), it becomes expensive because you must constantly burn natural gas to maintain the 760°C heat. For low concentrations with high air volume, we strongly recommend coupling the RTO with an upstream Zeolite Rotor Concentrator.
Why Partner with Ever-power?
For over 20 years, Ever-power has dominated the engineering of severe-duty environmental equipment. We possess profound technical expertise executing turnkey projects across steel, coking, power, and high-end manufacturing industries.
- ✔️ Full Value-Chain Integration: Our professional business divisions handle the entire EPC lifecycle: Complete Engineering Design ➔ Precision Manufacturing ➔ Overseas Logistics ➔ Intelligent Commissioning.
- ✔️ Advanced Control Capabilities: We manufacture and supply complete electrical control equipment. Our PLC systems guarantee automated, highly reliable thermal tracking to protect your facility.
- ✔️ Uncompromised Quality Credentials: Operating rigorously under ISO management systems, holding multiple structural patents for our rotary valve dynamics, and ensuring every system meets global compliance standards.
Comprehensive Plant Environmental Solutions
Beyond RTO systems, Ever-power architects industry-leading gas treatment configurations for complex chemical, particulate, and organic emissions across all heavy industries:
- Advanced VOC Treatment Systems – Total lifecycle solutions for industrial organic emissions.
- RTO (Regeneratieve Thermische Oxidator) – Multi-bed and Rotary thermal efficiency destruction of massive volume VOCs.
- RCO (Regeneratieve Katalytische Oxidator) & CO (katalytische oxidator) – Low-temperature catalytic oxidation.
- TO (Thermische Oxidator) – Direct-fired high-heat incineration for extreme concentration waste.
- Learn more about our legacy and engineering ethos: About Ever-power.
- Visit our homepage: Ever-power Global.
Eradicate Emissions & Slash Energy Waste
Stop settling for inefficient systems that disrupt your production with pressure spikes. Let Ever-power’s senior engineering team design a bespoke Rotary RTO that fits your exact plant footprint, guarantees > 99% destruction, and drives your auxiliary heating costs to absolute zero.
